Introduction to Oil-based Clay -- Pendant, Mascot, or Logo

3-D Manufacturing Description/Standards

  • 1. Demonstrate knowledge of clay sculpting and mold making basics.
  • 1a. Understand how to make clay prototypes are made by carving, hand building and wheel throwing.
  • 1b. Understand how 3-D pieces are manufactured using slip casting methods.
  • 1c. Understand how to make plaster molds to reproduce clay forms
  • 1d. Make multiple reproductions of various clay pieces.

  • 2. Demonstrate knowledge and skills in silicon mold making.
  • 2a. Understand real world applications of silicon molds in dentistry, metal casting, and the entertainment industry.
  • 2b. Create an oil-based clay prototype for reproduction.
  • 2c. Make a silicon mold, and cast the prototype in resin.
  • 2c. Make multi-piece molds and resin cast pieces.

  • 3. Demonstrate knowledge and skills of injection molding.
  • 3a. Properly prepare molds and parts for injection molding.
  • 3b. Reproduce objects using an injection mold machine.
  • 3c. Create original molds for injection molded reproductions.

  • 4. Understand 3-D CAD and sculpting software
  • 4a. Understand the vocabulary of 3-D software and printing.
  • 4b. Understand and use CAD software to create virtual 3-D objects.
  • 4c. Understand and use sculpting software to create virtual 3-D sculptures.
  • 4d. Understand and use an SLA 3-D printer to make computer generated virtual objects real.
  • 4e. Make multi-piece 3-D prints that "key" together to make a single part.

  • 5. Understand and use metal fabrication machines.
  • 5a. Understand software to create pieces for Plasma cutting..
  • 5b. Use PlasmaCam to cut parts to be welded into a 3-d object.
  • 5c. Use Metal Lathe to create prototype parts to be molded.

    • The teacher gives each student a piece of oil-based clay (Chavant NSP Soft) to work with. They are to notice how hard it is but then after holding it in their hands they can feel how it becomes softer and more movable. This is the clay we will use to make pieces for our silicone molds.

    Various ways of working the clay and tools are demonstrated by the teacher.

    Students are to make a shallow relief sculpted Pendant, Sports mascot or Logo that can be molded with silicone and reproduced in resin.

    Evaluation:
    2 points -- Small, 2X2X1" (One inch deep)
    5 points -- Detail Detail Detail
    3 points -- Smoothed sufficiently for molding

    10 points total


    Illustration 1 below is the original piece made with Chavant clay.


    Illustration 2 below shows the silicone mold and plaster mother-mold with the finished cast piece.

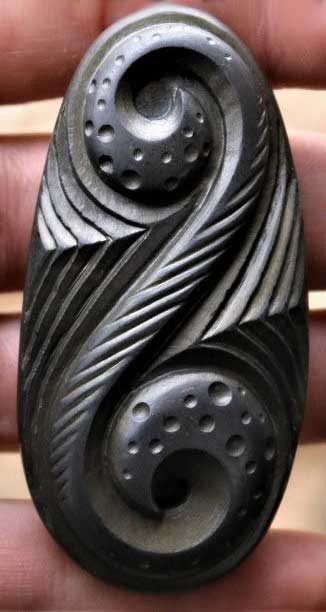

    A pendant doesn't need to look like anything, It can be purely decorative like the image below:
