    • Now that students have used Autocad to draw objects they can put that knowledge to use by drawing a house plan.

    First students are asked to do a little homework by sketching out their own house and label each room with approximate dimensions. This is so they have a realistic idea of the size of rooms for the house they design.

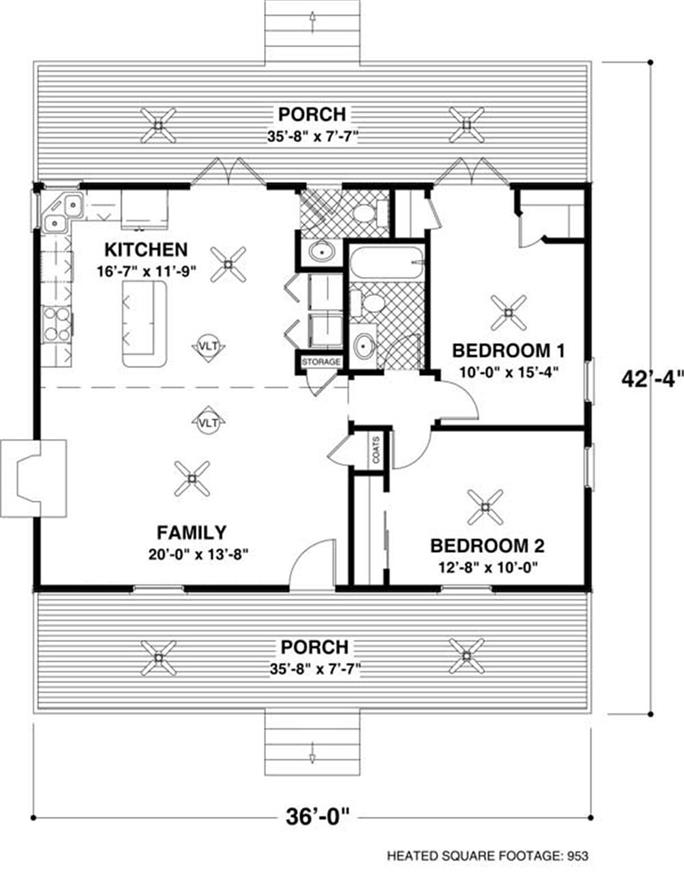

    Next, students should sketch out an original house plan on paper with approximate dimensions included and get it approved by the teacher. this could be a Tiny House or a complex full size house. A simple and efficient design like the one shown below could be made as well.

    After their design sketch is approved by the teacher, students can start using Autocad to draw up and dimension their design. Standard conventions should be used to represent doors, windows, cabinets, etc. Click here for a list of standards.

    "Blocks" will be demonstrated as well: https://www.youtube.com/watch?v=MKbYyfDM8qg

    Required items in Autocad house plan:
  • 1/4 inch thick walls solid or hatched
  • All Windows and doors
  • Exterior and interior dimensions
  • Room labels
  • Closets
  • Bathrooms (at least one with a tub
  • Utility/laundry room
  • Cabinets, countertops, sinks, toilets, etc.
  • Upper floor loft area if drawing a tiny house.
  • Must include a bedroom. (if bedrooms are upstairs, a second floor plan must be made for the upper floor.)
  • Title block at bottom with Student name, House name, and scale.


    • Evaluation:
    1 point -- Student's home neatly sketched and labeled with room sizes

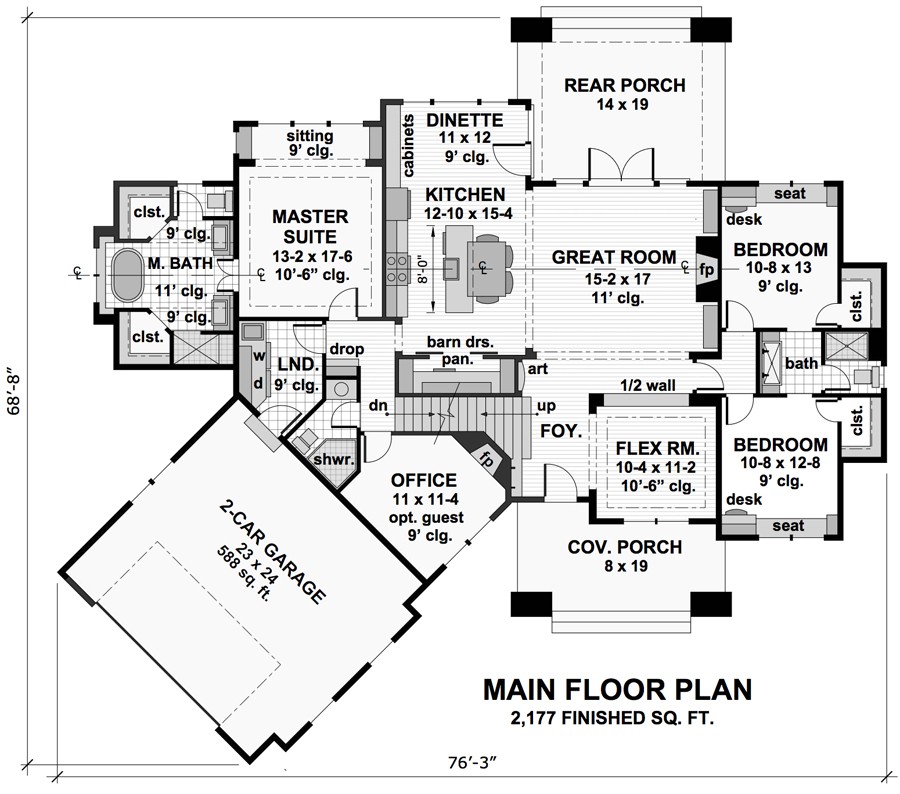

    2 points -- Original student designed house sketch with dimensions (another example)
    3 points -- Autocad house plan drawn neatly
    4 points -- Includes all required items.
    10 Points Total
